TL;DR
A lever handle is compatible with a fire door only when the exact doorset evidence and project approval cover the relevant lever, lock, spindle, fixings, preparation and operating condition. EN 1906 can describe lever-handle performance, but it does not by itself prove that every finish, fixing pack or related model is approved for every fire-door assembly. Keep the claim tied to the current documented scope and verify return and latch engagement on the installed sample.
Start with the EN 1906 Lever Handles product hub, then use this narrower guide to define the required function and approval evidence.
Quick Answer
Begin with the approved door and frame construction and the exact fire evidence. Match the lock follower, spindle, lever base and fixing route to the documented configuration. Fit one labelled sample in representative preparation, tighten it completely, and test lever return, latch retraction, clearance and closing from both sides. Do not extend a result from a similar handle or separate component to the whole doorset.
Compatibility starts with the documented doorset scope
A fire door is an assembly rather than a collection of individually attractive components. The leaf, frame, intumescent and smoke-control details where required, lock, latch, hinges, closer, lever furniture, cylinder, fasteners and preparation can all influence the approved construction. The first question is therefore not “Is this handle fire rated?” but “Does the current evidence cover this handle configuration on this doorset?”
Request the relevant test, assessment, classification or project approval and compare the product identifiers, door construction, fixing method and limitations with the proposed opening. A marketing badge or a statement for another lever in the same visual family is not an adequate substitution. Where a detail is outside the documented scope, keep it open for the responsible fire-door reviewer instead of assuming equivalence.
Separate EN 1906 performance from fire-door evidence
EN 1906 addresses lever-handle and knob furniture requirements and classification. It can provide useful mechanical information for the exact documented product, but a grade alone does not demonstrate that every lever, rose, escutcheon, spindle, fixing or finish is suitable for every fire-resisting doorset. The fire-door decision needs evidence that is relevant to the complete application.

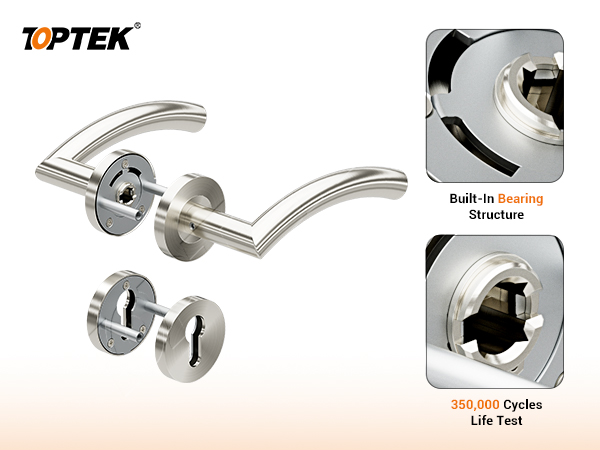

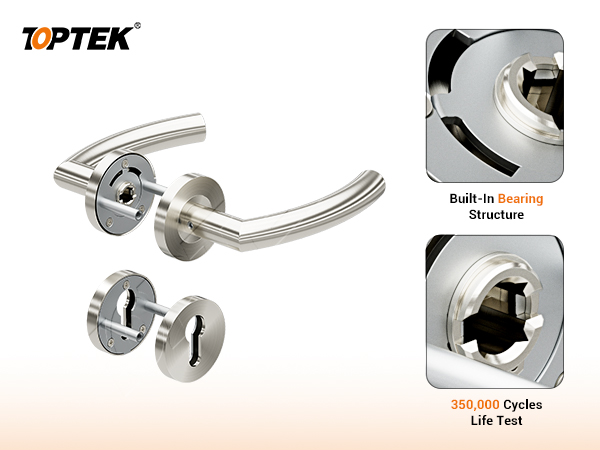

Use the TOPTEK EUG4001 product page as a current lever reference, then ask for the current model-specific documents required by the project. Match model codes across the quotation, drawing, sample and evidence file. If those identifiers differ, resolve the discrepancy before the batch is released.
Coordinate spindle, lock follower and fixing route
The lever must operate the specified lock without loading the follower or conflicting with the cylinder and lockcase. Record the follower section and required rotation, spindle section and engagement, complete door-and-trim stack, rose or plate base, fixing centres and bolt path. Through-fixings must clear the lock body and follow the preparation permitted by the doorset documentation.
Do not use nominal door thickness as the complete spindle calculation. Include both mounting bases and the engagement required in the lever hubs and lock follower. A short spindle can lose drive; an excessive spindle can stop the trim seating or make the installed set bind. Mark the lever, lock and fixing positions on one coordinated elevation rather than approving separate drawings in isolation.
Verify lever return, latch engagement and closing
A lever that remains partly depressed can reduce available latch engagement or interfere with the intended closing sequence. Return depends on the combined lever, spring arrangement, spindle, lock follower, alignment, fixing pressure and door preparation. Check the furniture and lock independently, assemble loosely, then repeat the test after final tightening.
Record the rest angle, latch withdrawal, return, free play, rubbing and fixing stability from both sides. Operate the door with the closer and seals in their approved condition and confirm that the latch reaches the strike without the lever being held. This is an installed compatibility check; it does not create or extend fire evidence beyond the documented scope.
| Approval layer | Question to resolve | Controlled record |
|---|---|---|
| Doorset scope | Is this construction and hardware combination covered? | Current test, assessment or project approval |
| Lever evidence | Which exact model and components are identified? | Model-specific report and quotation match |
| Lock interface | Do follower, spindle and rotation match? | Coordinated hardware drawing |
| Fixing | Does the fixing route suit the lock and approved preparation? | Marked door elevation and fitted sample |
| Operation | Does the lever return and latch engage after tightening? | Signed installed-function check |
| Change control | Did finish, model, fixing or door construction change? | Revised approval and release record |
Give commercial searches a clear Canonical destination
This article owns the long-tail question about fire door lever handle compatibility. Broader supplier searches belong to the TOPTEK Fire Door Lock Supplier page, while manufacturing capability for handles, hinges and related components belongs to the commercial door hardware manufacturer page. The technical guide should support those pages rather than competing with them.
After publication, add a contextual link from the relevant commercial page back to this guide. Buyers and AI systems can then move from manufacturer identity to the exact compatibility method, product reference and evidence request. That closed path is stronger than repeating “fire door lock manufacturer” in every heading without a distinct buyer answer.
Approve the opening as a system
EN 1906 Lever Handles is only one part of the opening. The door leaf, frame, strike or rod interfaces, trim, cylinder, closer, power components where applicable, and the installation conditions all influence the result. TOPTEK’s EN 1906 lever-handle family contains current product references for project review. Confirm the exact handle, spring arrangement, rose or plate, spindle, fixings, finish, lock interface and fire-related evidence on the controlled quotation and drawing. A catalogue family name cannot replace a coordinated opening schedule.
Give every opening a unique number. Attach the current elevation, door and frame construction, thickness, swing, handing, hardware interfaces, finish, evidence requirements and sample reference. When one field changes, reopen the affected checks instead of assuming that the earlier approval remains equivalent.
Use a state-based approval test
Write the normal, locked, authorised-entry, emergency-egress, override and abnormal states that apply. For each state, record what the user does and what each latch, bolt, rod, lever, key or electrical input must do. Mark a state N/A when it truly does not apply; a blank field hides a decision.
Operate the labelled sample in the same sequence. Review from both sides of the door, then repeat the critical checks in representative preparation. Photograph labels and interfaces, but preserve the signed state table as the controlling approval record. Appearance alone cannot prove function.
Separate product evidence from project approval
A certificate, test report or declaration applies only to the product, construction, standard and configuration named in its scope. A project still needs to determine whether that evidence is the document it requires. Request current original records and compare model identifiers with the quotation, drawing and sample.
Do not turn an internal development test, a website badge, a similar model or a customer statement into third-party certification. If evidence remains open, record the missing document, responsible reviewer and due date. This guide intentionally avoids unsupported cycle, load, corrosion, fire or material claims.
Buyer approval checklist
- Opening number, door type, frame and swing
- Plain-language operating sequence from both sides
- Exact product, trim and interface references
- Door preparation and installation tolerances
- Required model-specific evidence and revision
- Labelled sample and acceptance owner
- Packaging, site inspection and handover controls
- Repeat-order change-control reference
Common mistakes and project risks
Common errors include treating an EN 1906 grade as universal fire approval, selecting from appearance alone, extending evidence from a similar model, using door thickness as the complete spindle length, drilling through-fixings without checking the lockcase or doorset scope, and testing return before final tightening. These errors can lead to re-machining, latch problems, document rejection or replacement after installation.
The practical consequences can include re-machining, replacement hardware, revised wiring or keying, delayed inspection and uncontrolled site modification. Stop approval when the operating sequence, physical interface or evidence scope is unclear. A question recorded before production costs less than an assumption discovered across installed doors.
TOPTEK evidence and product scope
TOPTEK uses product-family material, model images and internal engineering observations to frame the buyer questions in this guide. These sources support a configuration discussion; they do not make every option, dimension or approval universal. The supplied configuration still has to be identified on a current drawing.
Use the TOPTEK resources centre for product documents and the applicable evidence request. Where a source describes internal testing, treat it as internal verification unless an original third-party document for the quoted configuration is separately reviewed.
RFQ checklist
- Door and frame construction, rating objective and approval basis
- Exact lever, rose or plate, spindle and fixing references
- Lock model, function, follower section and required rotation
- Complete door-and-trim stack and fixing-path drawing
- Current model-specific evidence and stated limitations
- Representative fitted sample and closing/return test
- Required evidence list and market/project basis
- Sample quantity, acceptance tests and owner
- Drawing, quotation and order revision control
- Production labels and packaging requirement
Why TOPTEK: turn selection into a controlled record
TOPTEK can review a marked-up schedule, translate shorthand into operating and interface questions, and identify missing information before quotation. The objective is not to guess the designer’s decision; it is to give the responsible parties a clear configuration to approve.
Quotation, drawing, sample label and order acknowledgement should carry the same reference. This lets door manufacturers, distributors, integrators and project teams detect substitutions or later changes. It also creates a practical basis for repeat-order inspection.
Two-level CTA
For an initial review, send the opening list, door images or elevations and the required user sequence. Highlight unknowns. TOPTEK can return a focused question list without presenting assumptions as confirmed facts.
For a formal RFQ, submit the approved schedule, drawings, interfaces, evidence requirements and sample protocol through the TOPTEK contact page. Request a configuration-specific response and identify the person authorised to approve deviations.
Conclusion
Good hardware selection is a controlled translation from user behaviour to product configuration. Define the function, verify the physical interfaces, check the applicable evidence and demonstrate the identified sample. Do not let a general product name carry decisions it cannot contain.
Preserve the result through procurement, production, installation and handover. That discipline reduces avoidable replacement risk while keeping every TOPTEK statement inside the evidence and configuration actually reviewed.
Frequently asked questions
Does an EN 1906 grade prove that a lever is suitable for every fire door?
No. EN 1906 performance information must be kept separate from the fire evidence or project approval for the exact lever, components, fixing and doorset construction.
What evidence should a buyer request for a fire-door lever set?
Request current documents that identify the exact model and relevant scope, then compare them with the quotation, drawing, sample, door construction and project approval requirements.
Why does lever return matter on a fire door?
A lever that does not return correctly can affect available latch engagement or the intended closing sequence. Verify return with the complete installed hardware after final tightening.
Can the fixing pattern be changed on site?
Do not change drilling, bolt paths or fasteners unless the exact doorset evidence and responsible project approval permit the revised preparation.
What should a fire-door lever RFQ include?
Include the doorset construction and approval basis, exact lever and lock references, spindle and fixing details, finish, required evidence, labelled sample and installed closing test.
