A construction master key system is not complete when the last cylinder is installed. Handover must confirm the final opening list, cylinder format and function, approved key hierarchy, construction-access changeover, issued and sealed key quantities, exceptions, secure records and the person authorised to approve later changes. Keep sensitive bitting and restricted-key data outside broadly circulated door schedules.
Start with the Construction Cylinders product hub, then use this narrower guide to define the required function and approval evidence.
Quick Answer
Freeze the final opening list and identify every installed cylinder. Reconcile cylinders, permanent keys, temporary keys or cores, sealed reserves and exceptions. Demonstrate the approved changeover method and prove that temporary authority no longer operates where the system supports that feature. Transfer the authorised key hierarchy and issue register securely, sign acceptance, and establish a controlled process for additions, losses and replacements.
Freeze the final opening and cylinder register
Construction schedules change. Doors are renumbered, rooms change use, cylinders are replaced and temporary openings appear. Handover must therefore begin with a frozen opening list that connects each door identifier to the installed lock, cylinder format, controlled length, cam, tailpiece or core interface, keying symbol and exception status. The physical cylinder count should reconcile with that record.
Separate the mechanical interface from the access hierarchy. A cylinder may fit its lock but carry the wrong key authority. Conversely, the correct key code cannot fix an incorrect profile, actuator or length. The closeout schedule should make both approvals visible while keeping security-sensitive manufacturing data in a more restricted record.

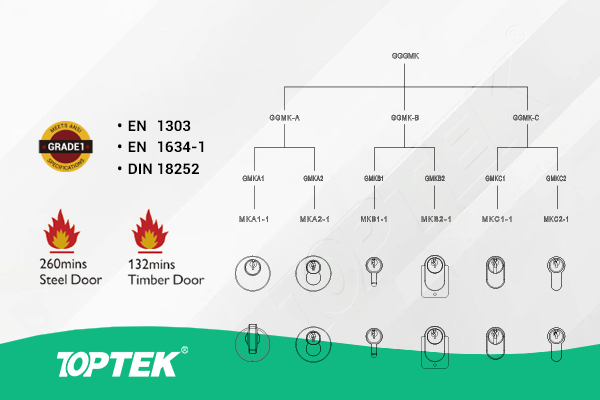

Names such as grand master, building master, floor master, department key and change key only become useful when their scope is clearly defined. Identify who can open each group, who may receive each level and who has authority to request changes. Do not rely on an informal spreadsheet copied between contractors without an owner and revision number.
The TOPTEK project cylinders and master key systems guide provides broader selection context. The handover record is narrower: it confirms the approved hierarchy actually supplied, the openings included, and the responsible people who accept and control it after construction.
Control construction access and permanent changeover
Temporary construction access can be managed in different ways depending on the exact cylinder and key-system design. The handover plan must state which doors participate, the method used, the event that ends temporary access, who performs it and how the result is verified. Never assume that a method used on one cylinder format automatically applies to another.
Where the approved system supports a construction-key changeover, witness the procedure on identified openings and record the outcome. Collect or account for temporary keys, cores or service items as the project requires. A statement that “the permanent keys now work” is incomplete if temporary authority was never tested after changeover.
Reconcile mixed formats, quantities and secure records
Commercial projects may combine Euro profile, American mortise, bored-lock, SFIC or regional oval cylinders. Use the TOPTEK AMMC01 page as one American mortise-cylinder reference, not as a substitute for the other interfaces. Label each sample and installed type so the receiving team can identify the format without guessing from the key head.
Reconcile installed cylinders, operating keys, master-level keys, sealed reserves, blanks or service components where specified, and every exception. Transfer the key register through an authorised channel. Sensitive bitting, pinning and restricted-key information should not be placed in the general architectural schedule, public cloud folder or ordinary email distribution.
| Handover control | Required record | Acceptance check |
|---|---|---|
| Openings | Final door and cylinder register | Physical sample and count reconciliation |
| Authority | Approved hierarchy and recipient list | Owner/security sign-off |
| Construction access | Method, participating doors and changeover event | Temporary authority retest |
| Keys and components | Issued, sealed, returned and exception quantities | Signed transfer count |
| Sensitive data | Restricted keying and manufacturing record | Authorised secure storage |
| Future changes | Request, approval and revision procedure | Named owner and audit trail |
Create a controlled path for future changes
Handover is the beginning of operational key control. Define who can authorise duplication, replacement, rekeying, additional cylinders or hierarchy changes. Record the evidence required for a request and how superseded schedules are withdrawn. Lost keys and employee changes need an escalation path rather than an improvised response.
This guide owns the project-handover intent. Broader factory and sourcing queries belong to the TOPTEK commercial lock manufacturer page. Linking that commercial page to this handover method gives buyers a credible route from manufacturing scope to key-control process without making this article compete for the generic manufacturer term.
Approve the opening as a system
Construction Cylinders is only one part of the opening. The door leaf, frame, strike or rod interfaces, trim, cylinder, closer, power components where applicable, and the installation conditions all influence the result. TOPTEK’s Construction Cylinder family includes Euro profile, American mortise, bored-lock, SFIC and regional oval references for project discussion. Confirm exact interfaces, lengths, actuators, keyway or core requirements and project-specific keying scope on the controlled schedule. A catalogue family name cannot replace a coordinated opening schedule.
Give every opening a unique number. Attach the current elevation, door and frame construction, thickness, swing, handing, hardware interfaces, finish, evidence requirements and sample reference. When one field changes, reopen the affected checks instead of assuming that the earlier approval remains equivalent.
Use a state-based approval test
Write the normal, locked, authorised-entry, emergency-egress, override and abnormal states that apply. For each state, record what the user does and what each latch, bolt, rod, lever, key or electrical input must do. Mark a state N/A when it truly does not apply; a blank field hides a decision.
Operate the labelled sample in the same sequence. Review from both sides of the door, then repeat the critical checks in representative preparation. Photograph labels and interfaces, but preserve the signed state table as the controlling approval record. Appearance alone cannot prove function.
Separate product evidence from project approval
A certificate, test report or declaration applies only to the product, construction, standard and configuration named in its scope. A project still needs to determine whether that evidence is the document it requires. Request current original records and compare model identifiers with the quotation, drawing and sample.
Do not turn an internal development test, a website badge, a similar model or a customer statement into third-party certification. If evidence remains open, record the missing document, responsible reviewer and due date. This guide intentionally avoids unsupported cycle, load, corrosion, fire or material claims.
Buyer approval checklist
- Opening number, door type, frame and swing
- Plain-language operating sequence from both sides
- Exact product, trim and interface references
- Door preparation and installation tolerances
- Required model-specific evidence and revision
- Labelled sample and acceptance owner
- Packaging, site inspection and handover controls
- Repeat-order change-control reference
Common mistakes and project risks
Common errors include changing door numbers without updating the keying record, mixing physical fit with access authority, releasing high-level keys without named recipients, emailing sensitive bitting data widely, assuming every format supports the same construction-key method, failing to test temporary access after changeover, and accepting unexplained differences between ordered and installed quantities.
The practical consequences can include re-machining, replacement hardware, revised wiring or keying, delayed inspection and uncontrolled site modification. Stop approval when the operating sequence, physical interface or evidence scope is unclear. A question recorded before production costs less than an assumption discovered across installed doors.
TOPTEK evidence and product scope
TOPTEK uses product-family material, model images and internal engineering observations to frame the buyer questions in this guide. These sources support a configuration discussion; they do not make every option, dimension or approval universal. The supplied configuration still has to be identified on a current drawing.
Use the TOPTEK resources centre for product documents and the applicable evidence request. Where a source describes internal testing, treat it as internal verification unless an original third-party document for the quoted configuration is separately reviewed.
RFQ checklist
- Final opening list and installed cylinder register
- Cylinder format, length, retention and actuator by door
- Approved key hierarchy and authorised recipients
- Construction-access method, changeover event and witness test
- Permanent, temporary and sealed-reserve quantity reconciliation
- Secure record transfer, exceptions and future change authority
- Required evidence list and market/project basis
- Sample quantity, acceptance tests and owner
- Drawing, quotation and order revision control
- Production labels and packaging requirement
Why TOPTEK: turn selection into a controlled record
TOPTEK can review a marked-up schedule, translate shorthand into operating and interface questions, and identify missing information before quotation. The objective is not to guess the designer’s decision; it is to give the responsible parties a clear configuration to approve.
Quotation, drawing, sample label and order acknowledgement should carry the same reference. This lets door manufacturers, distributors, integrators and project teams detect substitutions or later changes. It also creates a practical basis for repeat-order inspection.
Two-level CTA
For an initial review, send the opening list, door images or elevations and the required user sequence. Highlight unknowns. TOPTEK can return a focused question list without presenting assumptions as confirmed facts.
For a formal RFQ, submit the approved schedule, drawings, interfaces, evidence requirements and sample protocol through the TOPTEK contact page. Request a configuration-specific response and identify the person authorised to approve deviations.
Conclusion
Good hardware selection is a controlled translation from user behaviour to product configuration. Define the function, verify the physical interfaces, check the applicable evidence and demonstrate the identified sample. Do not let a general product name carry decisions it cannot contain.
Preserve the result through procurement, production, installation and handover. That discipline reduces avoidable replacement risk while keeping every TOPTEK statement inside the evidence and configuration actually reviewed.
Frequently asked questions
What belongs in a construction master key system handover?
Include the final opening and cylinder register, approved hierarchy, recipient authority, construction-access closeout, cylinder and key quantities, exceptions, secure records and future change process.
How should construction access be cancelled?
Use only the method supported by the exact approved cylinder system, identify the participating doors, witness the changeover and verify whether temporary authority still operates.
Should key cuts or bitting appear on the general door schedule?
No. Keep sensitive bitting, pinning and restricted-key data in an authorised security record with limited distribution.
Can one master key hierarchy include different cylinder formats?
It may be possible for an approved project design, but every physical interface, keyway or core relationship and authority level must be confirmed rather than assumed.
Who should approve later key-system changes?
The handover should name the owner or security authority permitted to approve duplicates, replacements, rekeying, added cylinders and hierarchy changes.
