Euro cylinder thumbturn clearance is an assembly question. A cylinder can fit the lock case and still leave too little room to grasp or rotate its inside thumbturn comfortably. The obstruction may be an escutcheon, a nearby handle, a recessed panel or another feature of the finished opening. For a door manufacturer or project buyer, the right approval sample includes the surrounding hardware and the finished door build-up.

TL;DR

  • Check the thumbturn’s full rotation and the space needed by the user’s hand.
  • Include the real escutcheon, lever, door surface and finished thickness in the sample.
  • Confirm the cylinder’s inside and outside dimensions separately from the thumbturn geometry.
  • Record the accepted combination so a later trim or cylinder substitution triggers another check.

Quick Answer

To assess Euro cylinder thumbturn clearance, obtain the exact cylinder drawing and assemble the proposed cylinder, lock and trim on a representative door. Check the thumbturn throughout its required movement and verify that it can be grasped without obstruction. Examine clearance to the escutcheon, handle and any adjacent surface under normal operating conditions. Cylinder length, thumbturn projection and thumbturn shape are different measurements; none alone proves that the complete assembly will work. Use the product instructions and project requirements to define acceptance, then retain the approved parts and drawing references.

For an early review, send the proposed inside elevation and cylinder drawing to ivan.he@toptekaccess.com. Mark the intended thumbturn side and identify the surrounding trim.

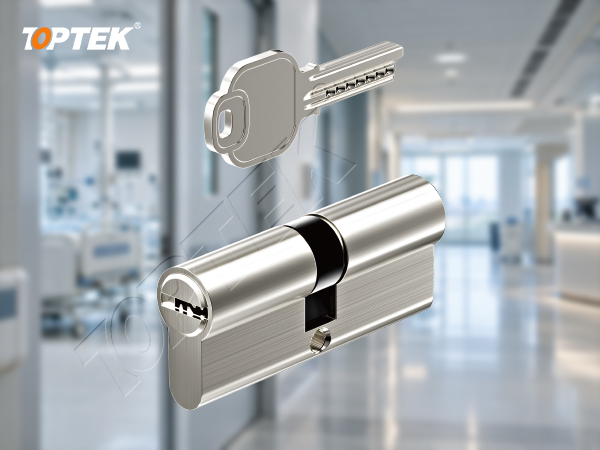

TOPTEK EPCHK7P Euro profile cylinder family reference
Euro profile cylinder family reference. This keyed cylinder image does not show or establish the geometry of a proposed thumbturn version.

Separate cylinder fit from operating clearance

Begin with two questions. Does the cylinder interface correctly with the lock and its retaining arrangement? Can the user operate the selected thumbturn when all surrounding parts are installed? An affirmative answer to the first question does not settle the second. Treat mechanical compatibility and accessible operating space as separate items in the sample record.

The cylinder body dimensions locate the assembly through the door. The thumbturn has its own shape, projection and rotating outline. Decorative or protective trim adds another surface around that outline. A photograph taken directly from the front can hide a collision in depth, so obtain a side view or section as well as the inside elevation.

TOPTEK’s project cylinder selection guide addresses the wider cylinder and key-system scope. A clearance review should identify the exact thumbturn arrangement within that selection, including the associated lock and trim, rather than relying on the words Euro profile alone.

Define the rotating outline and hand access

Ask for a drawing that shows the thumbturn dimensions and its position relative to the cylinder and finished trim. Review the space occupied throughout the movement required by the lock. A shape that clears the escutcheon in one position may approach another component as it turns. Check the complete movement rather than a convenient stationary position.

Hand access is a second requirement. A thumbturn may rotate freely without leaving a practical way to grasp it. Check the approach of the fingers, the surrounding recess and the relationship to any nearby lever. Do not approve a configuration solely because a technician can turn it with fingertips from an awkward angle.

A useful manufacturer example is the ASSA ABLOY CY110 thumbturn cylinder technical datasheet, which documents a specific thumbturn product. Use such drawings to understand what must be specified; obtain the corresponding drawing for the TOPTEK version under review instead of applying another product’s dimensions.

Review item What to obtain What the sample must demonstrate
Thumbturn shape Exact version and dimensioned drawing Unobstructed required rotation
Projection from trim Assembled side view Usable grasping space
Escutcheon recess Trim profile and mounting details No local collision or trapped access
Adjacent lever Lever position and operating movement Intended operation without interference
Finished door surface Panel, cladding and trim build-up Clearance on the actual finished opening

Measure the finished door and trim stack

Record the inside and outside faces used as measurement references. A bare door thickness is insufficient when the finished assembly includes additional plates, trim or cladding. Identify the retaining-screw centre reference and the required cylinder dimensions on each side using the selected manufacturer’s drawing convention.

Keep the inside and outside orientation clear throughout the enquiry. Labels such as A and B are useful only when the drawing defines which side each label represents. A reversed schedule can produce the right total length with the wrong distribution. Include a marked photograph when the door has asymmetric trim or a recessed inside face.

Do not increase cylinder length simply to gain thumbturn space without reviewing the whole assembly. A length change can alter the cylinder’s position relative to both trim faces and the intended protective arrangement. Ask the cylinder and trim suppliers to confirm a suitable combination. The correction may involve a different thumbturn or trim configuration rather than a longer body.

Review escutcheons and nearby handles together

A deep escutcheon or raised surround can restrict the approach to the thumbturn even when the cylinder itself fits. Identify whether the escutcheon is decorative, protective or part of a tested assembly. Its function affects which changes are acceptable. Do not grind a recess or omit a component merely to make a sample appear to fit.

Operate the lever and thumbturn in the ways the opening is intended to be used. Observe whether a hand approaching one control is obstructed by the other. Where the project has accessibility or escape requirements, have the responsible specifier assess the complete hardware combination against the applicable requirements; physical clearance alone does not establish compliance.

Account for door features beyond the small trim area. Applied panels, glazing beads and adjacent surfaces can change the available space. If the door is close to a wall or another fixed object when open, include the relevant positions in the practical assessment. Keep observations tied to the actual opening instead of turning one sample into a universal clearance rule.

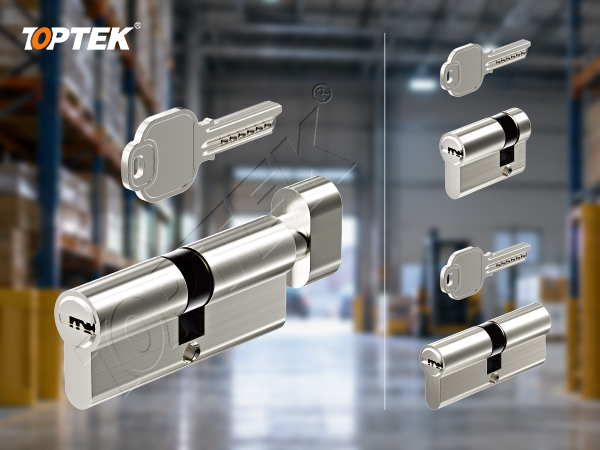

TOPTEK EPCVK6P Euro profile cylinder product family reference
Confirm the exact cylinder version in the quotation. A related keyed-cylinder product photograph cannot replace a thumbturn drawing or an assembled clearance sample.

Approve a representative sample and record the result

Use the proposed lock, cylinder, escutcheon, lever and fixing components on a representative door preparation. Install them according to the applicable instructions before evaluating clearance. Loose or partially seated trim can create misleading space that disappears when the final assembly is secured.

Record the sample’s component references, drawing revisions, door thickness and finished surface details. Photograph the thumbturn at relevant positions and add a side view showing projection. Note any contact, restricted grasp or inconsistent movement. An observation such as difficult to turn needs context: distinguish physical obstruction from resistance originating in the lock mechanism.

Use normal operation for this review. Do not treat a manual fit check as an endurance, accessibility or security certification. If the project requires a particular assessment or test, define it separately with the responsible supplier or specialist. Keep its scope and acceptance criteria separate from the basic clearance checklist.

For an order covering several door types, group openings by their actual trim and thickness combinations. A sample for one combination may not represent another with a deeper escutcheon or a different inside panel. Select samples that cover the meaningful differences, and identify which openings each accepted configuration represents.

Common mistakes and change-control risks

The most common purchasing shortcut is approving a cylinder from a catalogue front view without confirming the thumbturn option. Another is assuming that a family name guarantees identical knob geometry across all lengths or functions. Require a version-specific drawing and an unambiguous order description.

Late substitutions deserve the same attention as the first sample. A new rose, revised escutcheon or alternative thumbturn can change clearances even if the lock case remains unchanged. Define which component changes require a fresh fit check. This avoids discovering an interference only after the hardware has been distributed across a project.

Do not confuse a convenient thumbturn with the correct lock function. Confirm the required key and thumbturn behaviour, mechanical override arrangements where relevant, and any project restrictions independently. A comfortable control does not prove that the cylinder delivers the intended operating function or security scope.

RFQ checklist and TOPTEK configuration support

The TOPTEK construction cylinder range provides the starting product scope. The EPCHK7P product page is a family reference; ask the quotation to identify the exact proposed thumbturn configuration and its drawing. TOPTEK’s 2026 catalogue distinguishes cylinder formats and functions, but a family overview does not establish clearance for your door.

  • State the door type, finished thickness and intended inside face.
  • Identify the lock, cylinder function and inside/outside cylinder dimensions.
  • Attach the escutcheon and lever drawings with their relative positions.
  • Request the proposed thumbturn drawing and complete assembly instructions.
  • Define representative samples and the checks required for acceptance.
  • List applicable project requirements and the evidence needed for specification.
  • State quantities, finish, packing references and rules for substitutions.

Why TOPTEK? A coordinated cylinder enquiry can connect the component choice with the door, trim and project supply requirements. Use its quality management information to frame requests for configuration records and inspection evidence. Ask for documents specific to the proposed product rather than interpreting broad catalogue statements as approval of the complete opening.

Request a formal quotation from the TOPTEK commercial door hardware team with the marked drawings and sample acceptance record. A complete package lets the proposal identify the selected cylinder, associated trim assumptions and any information still needed from the door supplier.

Frequently asked questions

Is there one minimum thumbturn clearance for every Euro cylinder?

No universal value is established by the Euro profile description. Use the exact product geometry, surrounding trim and applicable project requirements to assess the assembly.

Does correct cylinder length guarantee thumbturn access?

No. Length positions the cylinder, while thumbturn shape, projection, escutcheon geometry and nearby hardware determine the remaining operating space.

Can a longer cylinder fix an obstructed thumbturn?

It may change the position, but it also changes the fit relative to the trim. Obtain approval for the complete cylinder and trim combination before changing length.

What belongs in a clearance approval sample?

Include the intended door build-up, lock, cylinder, thumbturn, escutcheon, lever and fixing components, assembled using their applicable instructions.

When should a clearance check be repeated?

Repeat the review when changes to the cylinder, thumbturn, trim, adjacent hardware or finished door build-up can affect the accepted operating space.

Conclusion

Euro cylinder thumbturn clearance should be accepted on the complete hardware assembly. Drawings identify the relevant dimensions; representative samples show whether rotation and hand access work together. Preserve the accepted component references so the same configuration can be ordered, installed and maintained consistently.
