TL;DR
A fire rated exit device cannot be approved from the push bar name alone. The exact door, frame, latch or rod arrangement, strike, closer, seals, trim, cylinder, electrical options and model-specific evidence must form one coordinated opening. The responsible project authority decides whether the submitted configuration satisfies the applicable fire and egress requirements.
Start with the Panic Exit Devices product hub, then use this narrower guide to define the required function and approval evidence.
Quick Answer
Start with the labelled door and frame, the required egress function and the approved latch path. Match the exact device, strike or rods, outside trim and closer to current drawings and evidence. Demonstrate self-closing and positive latching on the identified sample and representative opening. Keep unsupported options, field modifications and broad family claims out of the approval record.
A fire-rated opening is a complete assembly
The fire-rated exit device is one component in a door assembly whose performance depends on the supplied and installed configuration. Door construction, frame preparation, hardware reinforcement, latch engagement, closing action, seals, glazing and every permitted field preparation can affect the review. A product-family page or photograph cannot establish that a particular doorset is approved.
Ask the project team to identify the applicable code, specification, listing or approval basis and the authority responsible for acceptance. Then compare the submitted device and opening with that basis. This guide is a procurement framework, not a substitute for the current product documents, the doorset manufacturer’s limitations or the decision of the relevant authority.
Define the latch path before selecting hardware
A rim device transfers latching force to an edge strike on the frame or an approved mullion. A surface vertical-rod arrangement transfers the release and latch movement to the head and, when specified, the floor or threshold. Concealed rods introduce different door-preparation and service interfaces. The buyer should draw the complete latch path rather than writing only panic hardware on the schedule.
For pairs, identify the active and inactive leaves, meeting-stile condition, mullion, astragal, coordinator and closer sequence. For every leaf, state where the latch engages and what must happen after the push bar is released. If the design omits a bottom rod, uses less-bottom-rod hardware or depends on a special strike, require exact documentation for that configuration.
Check closing and positive latching
The exit device releases the door for egress, but the closer and door geometry must return the leaf to the intended closed position. Observe whether seals, pressure, hinges, floor conditions or an adjacent leaf prevent full closing. Then confirm that every latch enters its strike without needing a second push, key operation or manual correction.
Test with the door open and closed. An open-door bench test proves movement inside the device; it does not prove alignment at the installed opening. Record the observed state of each latch and the final door position. If the latch binds or only partly engages, correct the door, frame, strike or hardware relationship under the approved instructions instead of grinding or bending components on site.
Control options that may change the approval
Dogging, hold-open functions, electric latch retraction, alarms, outside trim and cylinder access can change how the opening behaves. Do not assume that an option available on a general panic device is permitted on a fire-rated configuration. The exact model and evidence must identify the allowed function, wiring and hardware combination.
Write normal, alarm, power-loss, authorised-entry and emergency-egress states where they apply. Confirm who controls each state and what the latch does. A blank cell should not stand for an assumption. If a state or option has not been verified, mark it open and keep it out of the released purchase description.
| Approval area | Buyer question | Required record |
|---|---|---|
| Doorset | Which labelled construction and preparation apply? | Door/frame schedule and approved drawing |
| Latch path | Where does each latch engage? | Device, strike, rod and mullion list |
| Closing | Does the leaf close and latch from use positions? | Witnessed sample/opening test |
| Options | Are dogging, electrical and trim options permitted? | Exact option scope and wiring |
| Evidence | Does every identifier match the quotation? | Current controlled documents |
Approve the opening as a system

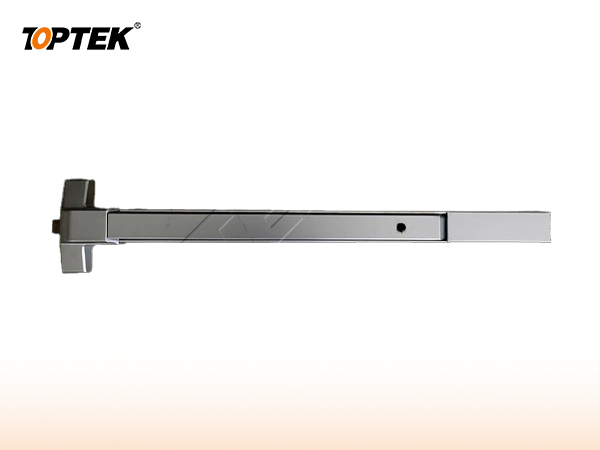

Panic Exit Devices is only one part of the opening. The door leaf, frame, strike or rod interfaces, trim, cylinder, closer, power components where applicable, and the installation conditions all influence the result. The PEDAM002 rim reference and PEDAM001 rod reference illustrate two exit-device architectures. Their pages and images do not, by themselves, prove a fire rating for a quoted configuration. A catalogue family name cannot replace a coordinated opening schedule.
Give every opening a unique number. Attach the current elevation, door and frame construction, thickness, swing, handing, hardware interfaces, finish, evidence requirements and sample reference. When one field changes, reopen the affected checks instead of assuming that the earlier approval remains equivalent.
Use a state-based approval test
Write the normal, locked, authorised-entry, emergency-egress, override and abnormal states that apply. For each state, record what the user does and what each latch, bolt, rod, lever, key or electrical input must do. Mark a state N/A when it truly does not apply; a blank field hides a decision.
Operate the labelled sample in the same sequence. Review from both sides of the door, then repeat the critical checks in representative preparation. Photograph labels and interfaces, but preserve the signed state table as the controlling approval record. Appearance alone cannot prove function.
Separate product evidence from project approval
A certificate, test report or declaration applies only to the product, construction, standard and configuration named in its scope. A project still needs to determine whether that evidence is the document it requires. Request current original records and compare model identifiers with the quotation, drawing and sample.
Do not turn an internal development test, a website badge, a similar model or a customer statement into third-party certification. If evidence remains open, record the missing document, responsible reviewer and due date. This draft intentionally avoids unsupported cycle, load, corrosion, fire or material claims.
Buyer approval checklist
- Opening number, door type, frame and swing
- Plain-language operating sequence from both sides
- Exact product, trim and interface references
- Door preparation and installation tolerances
- Required model-specific evidence and revision
- Labelled sample and acceptance owner
- Packaging, site inspection and handover controls
- Repeat-order change-control reference
Common mistakes and project risks
Common errors include treating panic function as fire-rating evidence, approving a family name instead of an exact model, omitting the strike or rod set from the submittal, permitting an unverified dogging function, overlooking closing and latching, and allowing field drilling or cutting without documented authority. Each error can invalidate the comparison between the submitted opening and its approval basis.
The practical consequences can include re-machining, replacement hardware, revised wiring or keying, delayed inspection and uncontrolled site modification. Stop approval when the operating sequence, physical interface or evidence scope is unclear. A question recorded before production costs less than an assumption discovered across installed doors.
TOPTEK evidence and product scope
TOPTEK uses product-family material, model images and internal engineering observations to frame the buyer questions in this guide. These sources support a configuration discussion; they do not make every option, dimension or approval universal. The supplied configuration still has to be identified on a current drawing.
Use the TOPTEK resources centre for product documents and the applicable evidence request. Where a source describes internal testing, treat it as internal verification unless an original third-party document for the quoted configuration is separately reviewed.
RFQ checklist
- Door and frame manufacturer, construction and label details
- Exact device, strike, rods, mullion and fastener references
- Closer, coordinator, seal, threshold and meeting-stile arrangement
- Outside trim, cylinder and authorised re-entry sequence
- Current model-specific listing, report, declaration and installation instructions
- Required evidence list and market/project basis
- Sample quantity, acceptance tests and owner
- Drawing, quotation and order revision control
- Production labels and packaging requirement
Why TOPTEK: turn selection into a controlled record
TOPTEK can review a marked-up schedule, translate shorthand into operating and interface questions, and identify missing information before quotation. The objective is not to guess the designer’s decision; it is to give the responsible parties a clear configuration to approve.
Quotation, drawing, sample label and order acknowledgement should carry the same reference. This lets door manufacturers, distributors, integrators and project teams detect substitutions or later changes. It also creates a practical basis for repeat-order inspection.
Two-level CTA
For an initial review, send the opening list, door images or elevations and the required user sequence. Highlight unknowns. TOPTEK can return a focused question list without presenting assumptions as confirmed facts.
For a formal RFQ, submit the approved schedule, drawings, interfaces, evidence requirements and sample protocol through the TOPTEK contact page. Request a configuration-specific response and identify the person authorised to approve deviations.
Conclusion
Good hardware selection is a controlled translation from user behaviour to product configuration. Define the function, verify the physical interfaces, check the applicable evidence and demonstrate the identified sample. Do not let a general product name carry decisions it cannot contain.
Preserve the result through procurement, production, installation and handover. That discipline reduces avoidable replacement risk while keeping every TOPTEK statement inside the evidence and configuration actually reviewed.
Frequently asked questions
Does panic hardware automatically qualify as a fire rated exit device?
No. Panic or emergency-egress function does not by itself prove a fire rating. Review the exact device and complete doorset against the applicable documents and project requirements.
Can a fire-rated exit device use dogging?
Do not assume it can. The exact configuration and applicable documentation must state whether the proposed dogging or hold-open function is permitted.
Why must the strike or rod set appear in the RFQ?
The strike, rods and latch points complete the latching path. Omitting them leaves a critical interface outside the approval record.
Is an open-door function test sufficient?
No. Test internal movement with the door open, then verify closing, alignment and positive latch engagement with the door installed or in representative preparation.
What documents should a buyer request?
Request the exact model drawing, installation instructions, applicable listing or approval evidence, doorset documents, option scope, sample record and controlled revision references required by the project.
