ANSI Mortise Lock Functions Explained: F04, F05, F07 and F09

What does this ANSI Mortise Lock Functions guide explain? This guide explains how F04 Office / Entry, F05 Classroom, F07 Storeroom, and F09 Apartment Entrance functions work in ANSI Grade 1 mortise locks. It is a practical guide for choosing ANSI Grade 1 mortise lock functions for office doors, classrooms, storerooms, apartment entrances, dormitory units, and commercial building projects.

Why do buyers need to understand ANSI Mortise Lock Functions before ordering? The wrong function can create access-control problems, unsafe egress, project delays, or costly replacement after installation. Therefore, lock brands, door manufacturers, distributors, contractors, and access control integrators should confirm the exact door function before requesting a mortise lock RFQ Grade 1 or finalizing a mortise lock quote ANSI project.

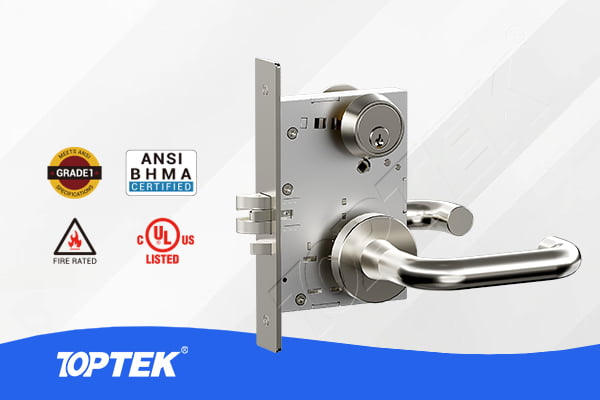

ANSI Mortise Lock Functions F09 Apartment Entrance Lock for ANSI Grade 1 mortise lock OEM ODM projects — TOPTEK ANSI Grade 1 mortise lock function options include F04 Office / Entry, F05 Classroom, F07 Storeroom, and F09 Apartment Entrance applications.

What Are ANSI Mortise Lock Functions?

What are ANSI Mortise Lock Functions? ANSI Mortise Lock Functions define how the levers, latchbolt, deadlatch, cylinder, thumbturn, and inside egress operation behave on each door type. In real projects, the function decides whether the outside lever is free, key-controlled, always locked, or used for apartment entrance control.

Why are function codes more than catalog names? Function codes translate real building needs into lock operation logic. For example, an office door, classroom door, storeroom door, and apartment entrance door need different access behavior. As a result, buyers should not use one generic commercial mortise lock Grade 1 function across all openings.

Which standard should buyers connect with these functions? Buyers should connect these functions with ANSI/BHMA A156.13 mortise lock performance expectations. BHMA explains that Grade 1 mortise locks must pass a rigorous 1,000,000-cycle opening and closing test with load applied. Buyers can review the BHMA A156.13 Mortise Locks overview.

How Does F04 Office / Entry Function Work?

What is F04 Office / Entry Function? F04 Office / Entry Function is designed for commercial office and entry doors where controlled outside access and free inside egress are required. The latchbolt operates by the lever from either side unless the outside trim is locked by the inside thumbturn or outside key.

What happens when F04 is locked? When F04 is locked, the outside lever becomes inoperative, while the inside lever always retracts the latchbolt for safe egress. This makes F04 useful for office rooms, commercial suites, staff entrances, and controlled interior doors. In addition, an auxiliary deadlatch helps deadlock the latchbolt when the door is closed.

Where should buyers use F04? Buyers should use F04 on office doors, entry doors, management rooms, staff rooms, and commercial suites that need flexible daily access. During working hours, the door can allow convenient entry. After hours, the outside side can be locked while inside exit remains simple.

How Does F05 Classroom Function Work?

What is F05 Classroom Function? F05 Classroom Function is designed for classroom doors, training rooms, and educational facilities where the outside lever needs key control while inside free egress must always remain available. The latchbolt operates by the lever from either side unless the outside lever is locked by the outside key.

What happens when F05 is locked? When F05 is locked, the outside lever becomes inoperative, while the inside lever always retracts the latchbolt for immediate egress. This supports classroom safety because students, teachers, or occupants can exit from inside without a key. An auxiliary deadlatch helps deadlock the latchbolt when the door is closed.

Where should buyers use F05? Buyers should use F05 on classrooms, training centers, school offices, institutional rooms, meeting rooms, and education facilities. It is especially useful when staff want key-controlled outside entry but do not want to restrict inside exit.

How Does F07 Storeroom Function Work?

What is F07 Storeroom Function? F07 Storeroom Function is designed for storage rooms, utility rooms, equipment rooms, service areas, and restricted-access spaces where the outside lever should remain locked. Entry from the outside requires a key, while the inside lever retracts the latchbolt for free egress.

Why does F07 improve restricted-room security? F07 helps prevent unauthorized access from the exterior side while keeping safe and immediate exit from the interior side. This function is ideal for back-of-house rooms, supply rooms, electrical rooms, maintenance areas, and utility spaces. The auxiliary deadlatch also helps improve security against latch manipulation.

Where should buyers use F07? Buyers should use F07 when the outside side should normally stay locked and only authorized users should enter by key. This makes storeroom mortise lock ANSI applications common in hotels, hospitals, schools, office buildings, retail buildings, and public facilities.

How Does F09 Apartment Entrance Function Work?

What is F09 Apartment Entrance Function? F09 Apartment Entrance Function is designed for apartment entrance doors, dormitory units, residential corridor doors, and multi-family housing applications. It supports controlled entry from the outside and immediate free egress from the inside.

How does the outside trim work in F09? The outside trim is typically key-operated for secured access, so unauthorized users cannot enter freely from the corridor side. This makes F09 suitable for apartment entrance doors, dormitory rooms, student housing, and residential project corridors.

How does the inside lever work in F09? The inside lever allows immediate exit for safety and convenience. This inside operation matters because apartment and dormitory users must leave quickly during daily use or emergency conditions. Therefore, buyers should test outside key operation and inside lever egress together.

How Do F04, F05, F07 and F09 Compare?

Why should buyers compare these four functions? Buyers should compare these four ANSI Mortise Lock Functions because each function solves a different door-opening scenario. Using the wrong function can create access confusion, user complaints, or project rework.

Function	Common Name	Best Application	Key Operation Logic
F04	Office / Entry	Office doors, entry doors, commercial suites	Outside can be locked; inside always allows egress
F05	Classroom	Classrooms, training rooms, educational facilities	Outside lever is key-controlled; inside always allows egress
F07	Storeroom	Storage rooms, utility rooms, service areas	Outside normally requires key entry; inside allows egress
F09	Apartment Entrance	Apartment units, dormitories, residential corridors	Outside trim is typically key-operated; inside lever allows exit

What is the simplest selection rule? Choose F04 for flexible office control, F05 for classroom key control, F07 for always-locked storage access, and F09 for apartment entrance security. However, buyers should always confirm local code, door schedule, fire-door use, and project security policy before final ordering.

Why Should These Functions Use Grade 1 Mortise Lock Hardware?

Why should commercial projects use Grade 1 locksets? Commercial projects need stronger durability, smoother latch movement, higher latch strength, and more reliable batch consistency than light-duty locks. TOPTEK provides ANSI Grade 1 Mortise Lock solutions for office, classroom, storeroom, apartment entrance, and high-traffic commercial doors.

What performance margin does TOPTEK provide? TOPTEK’s ANSI mortise lock platform has passed more than 2,000,000 cycles in internal laboratory testing. This supports buyers looking for a commercial mortise lock Grade 1 platform for demanding commercial doors. It also supports OEM/ODM buyers who need stable long-term product positioning.

Why does ANSI/BHMA A156.13 matter? ANSI/BHMA A156.13 gives buyers a structured performance reference for mortise locks and latches. TOPTEK develops its TKAM9200 platform around mortise lock ANSI A156.13 project logic, including durability, strength, latch operation, trim compatibility, and fire-door evaluation.

How Does Latchbolt and Deadlatch Design Affect Function Reliability?

Why does the latchbolt matter in every function? The latchbolt controls daily closing, latching, and engagement with the strike plate. If the latchbolt does not retract smoothly, the user may need more force to close the door. Therefore, latch design directly affects every F04, F05, F07, and F09 application.

How does TOPTEK improve latch performance? TOPTEK focuses on smooth latch retraction when the latch contacts the strike plate. Under controlled internal conditions, the door closing force can stay around 10N. This improves daily user experience on office doors, classrooms, apartment doors, and storage rooms.

Why does 10,000N latch pressure resistance matter? A stronger latch assembly helps the lock resist side pressure from heavy doors, closer force, and slight misalignment. TOPTEK’s ANSI mortise lock platform highlights latch pressure resistance up to 10,000N in internal testing. This supports buyers searching for a 10000N latch mortise lock or high security mortise lock Grade 1.

How Do Cylinders and Key Control Affect ANSI Functions?

Why does the cylinder matter in ANSI functions? The cylinder controls outside key operation, master key hierarchy, emergency access, and long-term facility management. In F05, F07, and F09 especially, key operation directly affects how the door is used every day.

How does precise cylinder machining help? Precise machining helps the cylinder operate smoothly and support stable key management across many doors. TOPTEK uses precision manufacturing logic for cylinders and lock components, helping project buyers reduce key roughness, misalignment, and batch inconsistency.

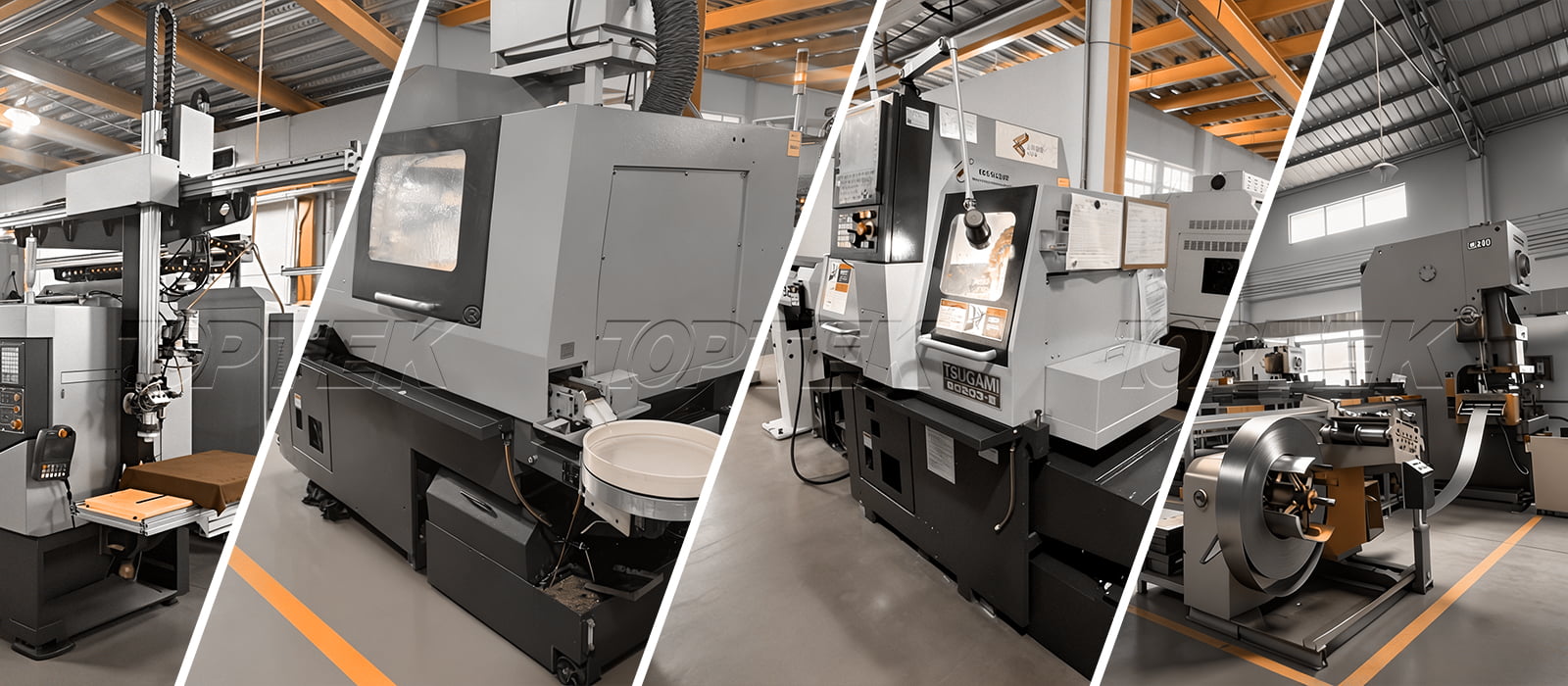

Japanese machining center for ANSI Mortise Lock Functions and project cylinder precision manufacturing — Precision machining supports stable cylinder operation, accurate component fit, and reliable ANSI mortise lock function performance.

Which cylinder system should buyers consider? Buyers should consider master key planning, emergency access, keyway control, and replacement strategy before ordering function-specific locks. TOPTEK’s Construction Cylinder range supports project key management, construction keying, and long-term access planning.

How Does Fire-Rated Door Use Affect Function Selection?

Can these functions support fire-rated openings? These functions can be evaluated for fire-rated openings when the complete door assembly and hardware set meet the project approval route. Buyers should confirm the lock, latch, trim, cylinder, hinges, closer, seals, frame, door leaf, and installation method together.

Why does UL10C matter? UL10C relates to positive-pressure fire door assembly testing in many North American projects. TOPTEK’s ANSI platform supports UL10C 3-hour fire-rated project evaluation. Buyers can review UL door hardware testing and certification for external testing context.

What should buyers avoid? Buyers should avoid assuming that one rated component makes the whole opening compliant. The complete assembly matters. Intertek also provides door hardware testing for locks, hinges, latches, closers, and exit devices.

How Does Manufacturing Quality Support Function Consistency?

Why does manufacturing quality affect lock functions? Function reliability depends on lock case accuracy, latch movement, spring stability, cylinder fit, trim alignment, and final assembly control. If one part drifts from tolerance, the same function may feel different across batches.

How does stamping control help? Precision stamping helps control lock case shape, faceplate holes, screw positions, and internal clearance. TOPTEK uses high-precision pneumatic punching and stamping equipment to support consistent ANSI mortise lock production.

Pneumatic punch press stamping workshop for ANSI Mortise Lock Functions and Grade 1 lock production — Precision stamping helps control lock case accuracy, component fit, and batch consistency for ANSI Grade 1 mortise lock function production.

How does TOPTEK control OEM/ODM projects? TOPTEK uses requirement review, engineering discussion, sample approval, First Article Inspection, pilot production, and mass production control. This helps ANSI Grade 1 mortise lock OEM and ANSI Grade 1 mortise lock ODM buyers reduce function mismatch and after-sales risk.

How Should Buyers Choose by Door Type?

Which function should office doors use? Office doors often use F04 when the project needs controlled access and flexible daily operation. This helps staff manage entry while keeping inside exit simple. It is a practical choice for commercial offices, management rooms, and private office suites.

Which function should classrooms use? Classrooms often use F05 when staff need outside key control and inside users need immediate egress. This makes classroom mortise lock ANSI selection important for schools, training rooms, education buildings, and institutional projects.

Which function should storage rooms use? Storage rooms, utility rooms, equipment rooms, and service areas often use F07 because the outside should remain locked. This protects supplies, equipment, documents, tools, and restricted spaces while maintaining inside egress.

Which function should apartment entrances use? Apartment entrances, dormitory units, and multi-family housing doors often use F09 because they need secured outside access and convenient inside exit. This function is useful for residential corridors, student housing, and apartment project lock schedules.

What Should Buyers Confirm Before Ordering?

What should buyers confirm before ordering ANSI function locks? Buyers should confirm the door type, function code, trim type, cylinder type, fire-door requirement, handing, door thickness, finish, testing data, and OEM/ODM requirement. A clear RFQ helps the supplier recommend the correct TKAM9200 mortise lock configuration.

Confirm whether the project needs F04, F05, F07, F09, or other function options.
Confirm whether the product must follow ANSI/BHMA A156.13 Grade 1 requirements.
Confirm whether the door needs a UL fire rated mortise lock or fire-door project evaluation.
Confirm whether the buyer needs sectional mortise lock or escutcheon mortise lock trim.
Confirm whether the project needs round rose mortise lock Grade 1 or square rose mortise lock Grade 1 trim.
Confirm whether the door schedule includes office doors, classrooms, storerooms, hotel guest rooms, or apartment entrances.
Confirm whether the project needs master key planning, construction keying, or cylinder override.
Confirm finish, lever design, thumbturn, rings, strike plate, packaging, and spare parts.
Confirm sample approval, retained samples, testing data, and batch consistency control.
Confirm whether the buyer needs ANSI Grade 1 mortise lock OEM, ODM, or private-label support.

How Does TOPTEK Support ANSI Mortise Lock Function Projects?

What makes TOPTEK suitable for function-based projects? TOPTEK combines TKAM9200 platform development, 24 function options, internal 2,000,000-cycle testing, 10,000N latch pressure resistance, 304 stainless steel structural logic, and OEM/ODM support. This helps brands and distributors build a complete ANSI Grade 1 mortise lock family.

Which TOPTEK pages support this article? Buyers can review TOPTEK’s ANSI product pages and company pages for model details and project sourcing support. Useful internal links include the ANSI Grade 1 Mortise Lock landing page, the TKAMEC9200 escutcheon lever trim page, and the About TOPTEK engineering page.

TOPTEK assembly workshop for ANSI Mortise Lock Functions and OEM ODM commercial door lock production — Controlled assembly helps ensure that F04, F05, F07, F09 and other ANSI mortise lock functions match approved project requirements.

Why does a complete product system matter? Commercial door projects rarely need one lock body only; they need locks, trims, cylinders, hinges, exit devices, and access control hardware to work together. Therefore, TOPTEK supports complete door-opening planning for ANSI, EN, AS, mechanical, and electromechanical projects.

Related TOPTEK Product Series for Complete Door Hardware Projects

Which TOPTEK product series support function-based ANSI projects? ANSI function selection works best when buyers evaluate the full door-opening system, not only the lock case. The following product series links provide extra internal support for buyers who need complete commercial door hardware packages.

Conclusion: How to Choose F04, F05, F07 and F09

What is the final selection rule? Choose F04 for office and entry doors, F05 for classrooms, F07 for storage and utility areas, and F09 for apartment entrance doors. Then confirm ANSI/BHMA A156.13 Grade 1 performance, fire-door needs, trim style, cylinder planning, and project installation requirements.

Why should global buyers consider TOPTEK? TOPTEK provides TKAM9200 ANSI Grade 1 mortise locks, 24 function options, escutcheon and sectional trims, project cylinders, UL10C fire-rated project support, 2M-cycle internal testing, 10000N latch performance, and OEM/ODM service. This helps buyers reduce risk across specification, approval, installation, and long-term maintenance.

What is TOPTEK’s product scope? TOPTEK Access is a China-based OEM/ODM manufacturer of commercial locks, architectural door hardware, and integrated access control locking solutions, supplying ANSI Grade 1 mortise locks, EN 12209 Grade 3 mortise locks, AS 4145 mortise locks, panic exit devices, multi-point locking systems, electronic locks, lever handles, cylinders, and hinges for global door manufacturers, distributors, contractors, and building projects.

What does TOPTEK stand for? TOPTEK stands for Commercial Door Hardware Reliability Solution. TOPTEK: Smart Design. Strong Security.

Need help choosing ANSI mortise lock functions? Contact TOPTEK to evaluate F04 Office / Entry, F05 Classroom, F07 Storeroom, F09 Apartment Entrance, TKAM9200 mortise lock platforms, and complete OEM/ODM commercial door hardware packages. Visit TOPTEK Access – Commercial Locks & Architectural Hardware Manufacturer.
