Product Description

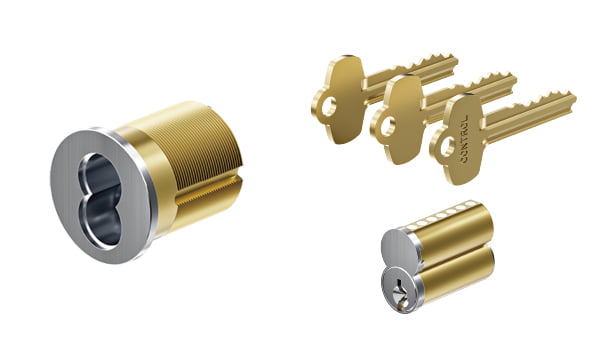

Small Format Interchangeable Core (SFIC)
• Standard BEST A keyway. Customize different keyways
• Standard BEST A-2 system pins
• Master keyed , Key alike, Key different are available
• IC core is also suitable for lockset and leverset replacement
• Brass material
• Cylinder with interchangeable & re-keyable cylinder core
• With 1 control key and 2 operating keys
• A specialized “control” key for insertion and extraction of the core
• The cylinder core with 6-pin or 7-pin tumbler mechanism
• Easy to make key duplicate
• Suitable for Mortise, KIK, RIM and RIMO cylinder housings
• Customize your logo on the product and packing
• ANSI Grade 1 certificate
SFIC Mortise Cylinder Housing
• Cylinder Housing for Small Format Interchangeable Core
• Solid brass material
• Length of cylinder housing for 6 Pins : 1-1/4”
• Length of cylinder housing for 7 Pins : 1-3/8” – 3”
• Different cams available
• Cylinder can be with or without interchangeable re-keyable cylinder core
• ANSI Grade 1 certificate
Technical Specifications
| Material | Brass |
| Cylinder Housing | Brass |
| Cylinder Core | Brass |
| Cam | Iron |
| Movable Pins | Brass 6 Pins |
| Finishes | SSS, MPSS, PC, SB, AB, AC, MB, GP, PB, MAB, BK |
